Implementation & Go-live

To successfully integrate Smile into your process, we suggest doing so through 3 steps:

  • Requirements gathering - explore your use case and what you want to achieve with Smile data.
  • Design - design your user journey and integration with Smile.
  • Implementation & Go-Live (this guide) - detailed steps to set up and get the integration launched.

Step 1: Implement Smile Wink

If you want users to connect their employment accounts while on your website or app, you need to integrate the Smile Wink Widget. See below for an example configuration to start:

<!DOCTYPE html>
<html>

<head>
    <meta charset="utf-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <link rel="icon" href="smileicon32.webp" sizes="32x32">
    <link rel="icon" href="smileicon192.webp" sizes="192x192">
    <title>Smile Wink</title>
</head>

<body>
    <script src="https://web.smileapi.io/v2/smile.v2.js"></script>
    <script type="text/javascript">
        const smileLinkModal = new SmileLinkModal({
            // .....

            /**
             * User token(link token) passed from your backend service which is obtained from the Smile API.
             * - For new users, please refer to API reference: https://docs.getsmileapi.com/reference/create-user-1
             * - For existing users, please refer to API reference: https://docs.getsmileapi.com/reference/tokens
             */
            userToken: '<usertoken>',

            /**
             * Use the template ID to determine how your widget looks like embedded in your app or website.
             * You can find and create the template ID in the Smile developer-portal.
             * https://developer-portal.smileapi.io/link/template
             */
            templateId: "<ID of wink template >",

            /*********************************************************************************************************************
            ** Callback Register Section, please refer to API reference: https://docs.getsmileapi.com/reference/chapter-5
            **********************************************************************************************************************/

            /**
             * Account login callback.
             */
            onAccountCreated: ({ accountId, userId, providerId }) => {
                console.log('Account created: ', accountId, ' User ID:', userId, ' Provider ID:', providerId)
            },

            /**
             * Account login success callback.
             */
            onAccountConnected: ({ accountId, userId, providerId }) => {
                console.log('Account connected: ', accountId, ' User ID:', userId, ' Provider ID:', providerId)
            },

            /**
             * Account revoke callback.
             */
            onAccountRemoved: ({ accountId, userId, providerId }) => {
                console.log('Account removed: ', accountId, ' User ID:', userId, ' Provider ID:', providerId)
            },

            /**
             * Token expired callback.
             */
            onTokenExpired: () => {
                console.log('Token expired');
            },

            /**
             * Smile link SDK close callback.If you want to know which button the user clicked to trigger the close event, you can pass parameters like this.
             * onClose:({reason})=>{}
             * If the value of reason is equal to "close", it means that the user clicked the close icon in the upper right corner of the page to close the SDK
             * If the value of reason is equal to "error", it means that the user clicked the EXIT button after having an error  trying to connect through the Wink Widget
             * If the value of reason is equal to "exit", it means that the user clicked the DONE button on the connection page to close the SDK
             */
            onClose: ({ reason }) => {
                console.log('Link closed, reason:', reason)
            },

            /**
             * Account connect error callback.
             */
            onAccountError: ({ accountId, userId, providerId, errorCode }) => {
                console.log('Account error: ', accountId, ' User ID:', userId, ' Provider ID:', providerId, 'Error Code:', errorCode)
            },

            /**
             * Uploads submit callback.
             */
            onUploadsCreated: ({ uploads, userId }) => {
                console.log('Uploads: ', uploads, ' User ID:', userId);
            },

            /**
             * Uploads revoke callback.
             */
            onUploadsRemoved: ({ uploads, userId }) => {
                console.log('Uploads: ', uploads, ' User ID:', userId);
            },

            /**
             * User event callback is used to capture all the user activities from Smile Wink SDK
             */
            onUIEvent: ({ eventName, eventTime, mode, userId, account, archive }) => {
                console.log('eventName:', eventName,
                    "eventTime:", eventTime,
                    "mode:", mode,
                    "userId:", userId,
                    "account:", account,
                    "archive:", archive);
            }
        });
        smileLinkModal.open()
    </script>
</body>

</html>

User tokens (Link tokens)

User tokens are temporary (expires in 5 hours) access keys that allow you to start the Smile Linking process.

Link initialization for the new user:

  1. Create a new Smile user by calling the create /users endpoint with metadata, such as your user identifier in your product/system. You will receive a Smile userId. We recommend storing this Smile userId in your system for future reference and use
  2. Create a new user token by calling the create /tokens endpoint with their userId. You will receive their userToken
  3. Provide the userToken in your Smile Wink initialization. Make sure the user tokens are requested server-side and your api_key and api_secret are never exposed on the front end.

Link initialization for a returning user or for refreshing the Link token

  1. Obtain a new user token by calling the /tokens endpoint with the userId that you have previously stored.
  2. Provide the userToken in your Smile Wink initialization. Make sure user tokens are requested server-side and your client_id and client_secret are never exposed on the front end.
<!DOCTYPE html>
<html>

<head>
 <!-....-->
</head>

<body>
    <script src="https://web.smileapi.io/v2/smile.v2.js"></script>
    <script type="text/javascript">
        const smileLinkModal = new SmileLinkModal({
            // .....

            /**
             * User token passed from your backend service which is obtained from the Smile API.
             */
            userToken: 'PUT YOUR USER TOKEN HERE !',

            // .....
        });
        smileLinkModal.open()
    </script>
</body>

</html>

Step 2: Retrieve transactions, estimated incomes (eincomes), and contributions data with test accounts

To use the Sandbox, you can use the following example credentials:

User NameFull NameEmailMobile PhonePasswordVerification Code
GeorgeGeorge Palomero Jr.[email protected](+63) 95599912341234561234
RyanRyan Ng[email protected](+62) 81199943216543211234
ChristinaChristina Tan[email protected](+65) 99996789YGUS11234
AnishaAnisha Bhatia[email protected](+91) 95111987651234561234

Before proceeding to the next step, make sure to test your implementation. Click on one of the providers on the provider list, and use one of the sandbox credentials to connect to the selected providers.

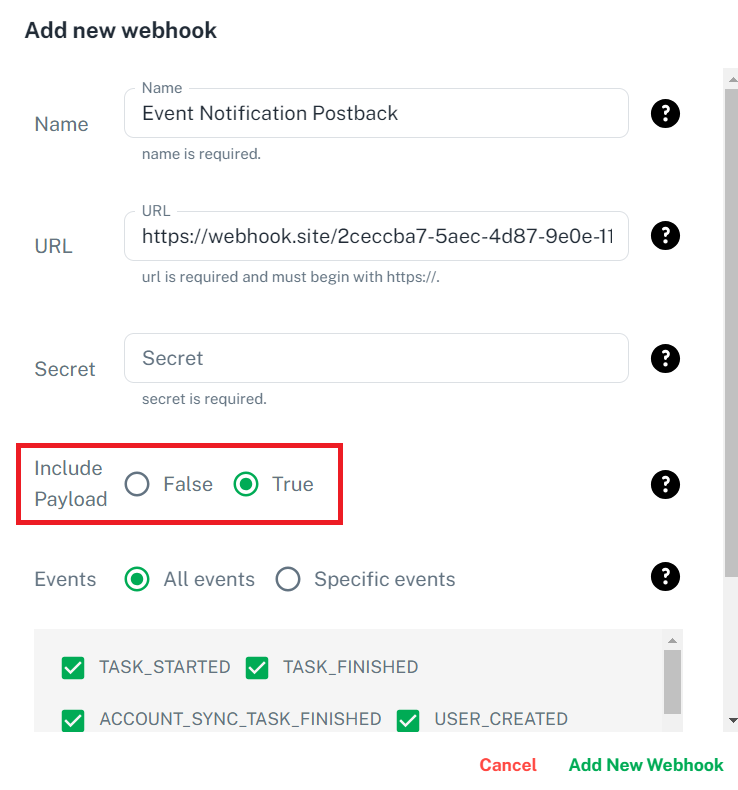

We recommend subscribing to Smile API's webhook payload in Sandbox Mode to retrieve transactions, estimated income, and contribution information with the test account. Through the Smile API's Webhook payload, you can fetch different fields from one specific datapoint or multiple datapoints all at once.

You can enable the Webhook payload through the Webhook section in the Sandbox Mode of the Developer Portal, where you can retrieve data of the three datapoints accordingly by subscribing to the following webhook events listed below and selecting "True" on our Include Payload setting.

Webhook EventDescriptions
TASK_FINISHEDTo return the payload of the selected datapoints.
ACCOUNT_SYNC_TASK_FINISHEDTo return the payload for the newly synced datapoints.
TRANSACTIONS_ADDEDTo retrieve transaction data fields.
EINCOMES_ADDEDTo retrieve estimated income data fields.
CONTRIBUTIONS_ADDEDTo retrieve contribution data fields.

For transactions information, you can fetch the following fields from the TRANSACTIONS_ADDED event:

  • Amount
  • Start date
  • End date

Here is an example response:

[{
    "id": "t-123abc456def789abc123def456abc78",
    "date": "2022-08-31",
    "currency": "PHP",
    "amount": -16.9,
    "metadata": {
        "createdAt": "2022-09-02T23:36:12Z",
        "sourceId": "a-123abc456def789abc123def456abc78",
        "sourceType": "ACCOUNT",
        "userId": "tenantId-123abc456def789abc123def456abc78",
        "providerId": "abccorp",
        "accountId": "a-123abc456def789abc123def456abc78"
    },
    "description": "Platform fee",
    "referenceId": "Order ID-996438805066"
}, {
    "id": "t-123abc456def789abc123def456abc78",
    "date": "2022-08-29",
    "currency": "PHP",
    "amount": 550,
    "metadata": {
        "createdAt": "2022-09-02T23:36:12Z",
        "sourceId": "a-123abc456def789abc123def456abc78",
        "sourceType": "ACCOUNT",
        "userId": "tenantId-123abc456def789abc123def456abc78",
        "providerId": "abccorp",
        "accountId": "a-123abc456def789abc123def456abc78"
    },
    "description": "Order revenue",
    "referenceId": "Order ID-994728692055"
}, {
    "id": "t-123abc456def789abc123def456abc78",
    "date": "2022-08-28",
    "currency": "PHP",
    "amount": 250,
    "metadata": {
        "createdAt": "2022-09-02T23:36:12Z",
        "sourceId": "a-123abc456def789abc123def456abc78",
        "sourceType": "ACCOUNT",
        "userId": "tenantId-123abc456def789abc123def456abc78",
        "providerId": "abccorp",
        "accountId": "a-123abc456def789abc123def456abc78"
    },
    "description": "Rider incentive",
    "referenceId": "Order ID-234728692099"
}]

For estimated incomes (eincomes) information, you can fetch the following fields from the EINCOMES_ADDED event:

  • Amount
  • Month

Here is an example response:

[
   {
      "id":"einc-cd80c6779ef7423c8af5b38b57e4b1eb",
      "month":"2022-11",
      "currency":"PHP",
      "baseAmount":8500,
      "metadata":{
         "createdAt":"2022-12-07T09:33:11Z",
         "sourceId":"a-94f56ca9c3ae42b5acc0c5bd64017f4b",
         "sourceType":"ACCOUNT",
         "userId":"smilebond-7892a2010b444bbe98916db4969e1863",
         "providerId":"sss_ph",
         "accountId":"a-94f56ca9c3ae42b5acc0c5bd64017f4b"
      }
   },
   {
      "id":"einc-cefcc7e769cd48ea8c4e58d3653b3cab",
      "month":"2022-10",
      "currency":"PHP",
      "baseAmount":8500,
      "metadata":{
         "createdAt":"2022-12-07T09:33:11Z",
         "sourceId":"a-94f56ca9c3ae42b5acc0c5bd64017f4b",
         "sourceType":"ACCOUNT",
         "userId":"smilebond-7892a2010b444bbe98916db4969e1863",
         "providerId":"sss_ph",
         "accountId":"a-94f56ca9c3ae42b5acc0c5bd64017f4b"
      }
   }
]

For contributions information, you can fetch the following fields from the CONTRIBUTIONS_ADDED event:

  • Employer name
  • Job title
  • Start date
  • End date

Here is an example response:

[{
    "id": "con-123abc456def789abc123def456abc78",
    "date": "2022-06-30",
    "currency": "PHP",
    "amount": 2250,
    "referenceId": null,
    "metadata": {
        "createdAt": "2022-08-24T05:14:37Z",
        "sourceId": "a-123abc456def789abc123def456abc78",
        "sourceType": "ACCOUNT",
        "userId": "tenantId-123abc456def789abc123def456abc78",
        "providerId": "sss_ph",
        "accountId": "a-123abc456def789abc123def456abc78"
    }
}, {
    "id": "con-123abc456def789abc123def456abc78",
    "date": "2022-05-31",
    "currency": "PHP",
    "amount": 2250,
    "referenceId": null,
    "metadata": {
        "createdAt": "2022-08-24T05:14:37Z",
        "sourceId": "a-123abc456def789abc123def456abc78",
        "sourceType": "ACCOUNT",
        "userId": "tenantId-123abc456def789abc123def456abc78",
        "providerId": "sss_ph",
        "accountId": "a-123abc456def789abc123def456abc78"
    }
}, {
    "id": "con-123abc456def789abc123def456abc78",
    "date": "2022-04-30",
    "currency": "PHP",
    "amount": 2250,
    "referenceId": null,
    "metadata": {
        "createdAt": "2022-08-24T05:14:37Z",
        "sourceId": "a-123abc456def789abc123def456abc78",
        "sourceType": "ACCOUNT",
        "userId": "tenantId-123abc456def789abc123def456abc78",
        "providerId": "sss_ph",
        "accountId": "a-123abc456def789abc123def456abc78"
    }
}]

For additional data fields, please refer to the Smile API reference and subscribe to their payloads by selecting their respective webhook events.

Step 3: Feed transactions, eincomes, and contributions data to your credit decision engine

You can use Smile data to calculate further the factors matching your product, then send these factors to your credit decision engine. Normally factors can be under the following categories:

  • Cumulative number of income/contribution months
  • Number of income/contribution in the latest 3/6/9/12 months
  • Income/contribution delta in the latest 6/12/24 months

Step 4: Setup webhooks

To receive regular updates on a user's accounts, identity, contribution, and employment data, subscribe to webhooks.

Webhooks send notifications to your system every time something occurs, for example, when an account is connected, removed, or updated.

To monitor new and existing accounts, Smile recommends subscribing to the following webhooks:

EventEvent TypeDescription
Account Connection SuccessfulACCOUNT_CONNECTEDSent when a user successfully connects their work account.
Account Disconnection SuccessfulACCOUNT_DISCONNECTEDSent when a user disconnects or revokes the link to their work account.
Account Connection FailedACCOUNT_FAILEDSent when the account linking process is unsuccessful.

To monitor changes to identity, contribution, and employment data, Smile recommends subscribing to the following webhook events listed below, through the Webhook section in the Developer Portal, where you can retrieve data accordingly by selecting "True" on our Include Payload setting.

However, do note that Webhook Payload is only available for webhook events of "TASK_FINISHED" and "Account_SYNC_TASK_FINISHED".

EventEvent TypeDescription
Task StartedTASK_STARTEDSent when the data sync process for a user's account is started.
Task FinishedTASK_FINISHEDSent when the data sync task process for a user's account is finished, contains which datapoints have been synced

Or you can subscribe to dedicated datapoint related events

EventEvent TypeDescription
Contributions Data AddedCONTRIBUTIONS_ADDEDSent when social security contributions data shared by a user is added.
Estimated Incomes Data AddedEINCOMES_ADDEDPayload when estimated income data has been derived from data shared by a user.
Transactions Data AddedTRANSACTIONS_ADDEDSent when transaction data shared by a user is added.
.........

Step 5: Go live and scale

After a successful implementation and multiple successful tests in Sandbox Mode, you can switch to the Production Mode for your launch.

Change the API Key pair

The API Key pair can be found in the API Keys section of the Developer Portal. Use a production key when switching to Production Mode.

Start slow

For your first Production accounts, you can test yourself with your accounts, or create an account with a freelance gig platform (i.e. Upwork) and connect that account.

Launch and scale

After testing with your accounts, you can test with your real users. We recommend starting with a small subset of your users to ensure everything works as expected. Then, advance the subset gradually to your full user base.
